Terex Ecotec
TTS 620T
Tracked Trommel Screen
Backed with OPS's
Aftermarket Services and support

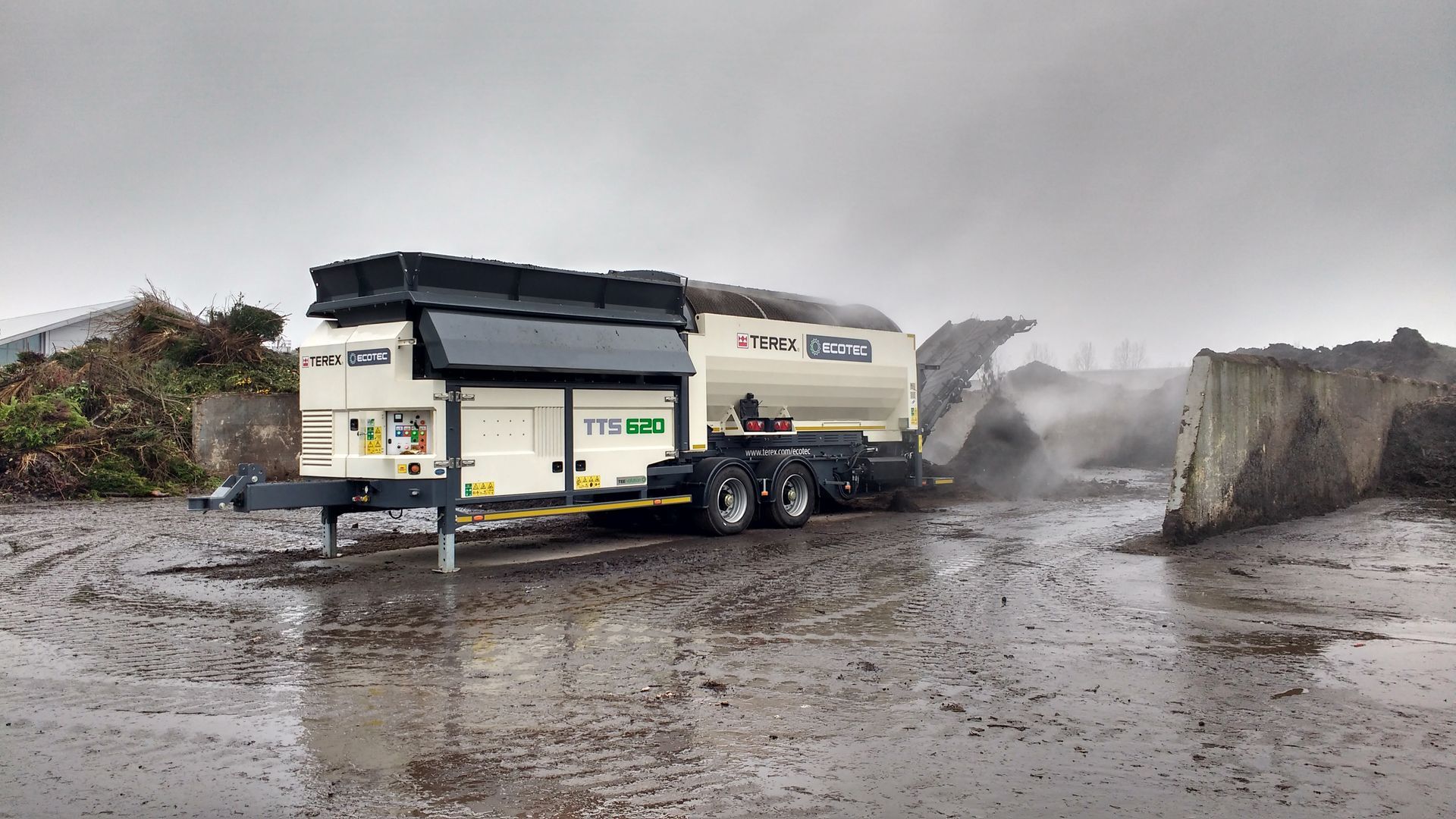

Ecotec's TTS 620T Tracked Trommel Screen features a highly efficient engine and hydraulic drive system combined with advanced material processing control system offer maximum production combined with minimum costs. It is ideally suited for screening compost, biomass, soil, gravel & waste.
An intuitive push button control panel allows the operator to easily configure the machine to suit the required application whilst the intelligent feeder control system continually adjusts the feeder speed to optimise screening rates. Special consideration has been given to minimise change out time for the screening drum. The process, which takes a matter of minutes, places the TTS 620T as a market leader. The machine has also been designed to accept a number of other manufacturers screening drums allowing customers to smoothly integrate the TTS 620T into established fleets.
Unprecedented levels of service access catapults the TTS 620T into a league of its own. All conveyors are built to a modular design allowing each one to be removed independently for ease of maintenance. The swing out engine cradle gives operators unrestricted ground level access to all service components. Hinged doors on both sides of the trommel drum offers unobstructed access for maintenance and cleaning.
Technical Specifications
WORKING DIMENSIONS
Width: 6.9m (22’ 8”)
Length: 15.5m (51’)
Feed height: 2.85m (9’ 4”)
HOPPER AND BELT FEEDER
5.5m³ (7.2yd³) capacity
2.85m (9’ 4”) feed in height
4m (13’ 1”) feeder length
1200mm (47”) 3 ply plain belt, 5 + 1.5 covers
Head drum drive system with compact gearbox solution
Slide out feeder cassette for maintenance Hopper extensions
DRUM
5.5m (18’ 1”) Length
2.0m (6’ 7”) Diameter
Double welded chain and drive sprocket
Compatible with Doppstadt SM620
Horizontal drum
Spiral design for material transfer
Easily removable for maintenance and application flexibility
Active running pressure monitoring system to adjust feed rate
Full drum clean brush;
Wheeled Machine ø600mm, 3x5mm bristle, hydraulic folding
Tracked machine ø500mm, 3x5mm bristle, hydraulic folding
1 piece drum door opening both sides
COLLECTION CONVEYOR
1400mm (55”) 3 ply plain belt, 4 + 2 covers
Cassette style - removable for maintenance
Head drum ø184mm
Rear deflector plate to adjust loading point onto transfer conveyor
Pressure monitoring system to enable feeder kick out
TRANSFER CONVEYOR
800mm (32”) 3 ply plain belt, 4 + 2 covers
Cassette style - removable for maintenance
Head drum ø184mm
FINES DISCHARGE CONVEYOR
1000mm (39”) 3 ply chevron belt, 3 + 1.5 covers
Discharge Height;
Max 3.2m Wheeled Machine Max 3.42m Tracked Machine
Max 3.2 on wheeled machine, Max of 3.42 on tracked machine
Discharge LHS
Head drum ø184mm
OVERSIZE CONVEYOR
1200mm (47”) 3 ply chevron belt, 3 + 1.5 covers
Discharge Height;
Max 3.43m Wheeled Machine
Max 3.56m Tracked Machine Head
drum ø184mm
Variable speed control
BOGIE
2 axles, 8 studs
ABS
Suspension type leaf spring
Super single c/w 385/55 R22 tyres
Pintle hook design
European whole vehicle type approved
TRACKED UNDERCARRIAGE
Bolt on tracks and independent sub-frame
400mm (16”) shoe
3300mm (10’ 10”) Sprocket centres
